Organic Rejuvenation
" Healthy Products for Healthy People "
2018
This Organic Rejuvenation which works on the aim of “ Healthy Products for Healthy People” is the Himalaya and BMS Organic concept store combining with Facial Treatment service and Organic meals are served in the Rejuvenation Organic Cafe in order to achieve healthy-life balance suited with the concept of KLIA 2. It will be a double storey which is about 6.9 meter with Mezzanine floor and design boundary area is within 3000 sqft. The design proposal designed based on the following categories such as Comfortable & Flexible retail, Better environment performance (Efficiency), Green & Sustainable design concept, work life balance(Cultivate a healthy work and life culture), and Innovative. Organic Rejuvenation is proposed to encourage the urban people to lead a healthy lifestyle.
Client Profile
The Himalaya Drug Company was founded in 1930 by Mr. M. Manal with a clear vision to bring Ayurveda to society in a contemporary form and to unravel the mystery behind the 5,000-year-old system of medicine.
"Our retail concept is not only a business; it goes beyond profit making and make everything happens with love and sincerity. As a family we passionately built BMS Organics to how it is today, upholding our mission to promote a holistic and healthy lifestyle and an eco-friendly diet."
 |  |  |
|---|---|---|
 |  |
The site chosen is located at shoplot no.415006 . The existing retail shop operating is Starbucks Coffee . The site located at the Left side after Main Entrance of Main Terminal, KLIA 2 and easy accessibility because the passenger lift is located beside the side facade of the shop. The site chosen is suitable for double-volume space . The existing layout size is approximately 2522 sqft. Due to the busy human traffic flow along the main entrance , it is a strategic place for retail concept stores as does not need to be worried about the crowd .
Site Analysis
Concept
The concept that will applied for Organic Rejuvenation is “DOSHA” . According to Ayurveda, “DOSHA” is one of three bodily Bio-elements that make up one's body constitution . The colour scheme that will applied base on this concept is Grey, Yellow ,Brown ,Green and White . Lastly, this concept will be applied as the design element for the Façade design Funiture design , Wall Design , and Floor plan .
Conceptual Board & Mood Board
Sketches
Sketch model sketches
Schematic Drawings
Furniture Layout - Mezzanine Floor
Scale 1 : 75
Furniture Layout - Ground Floor
Scale 1 : 75
Section A-A
Scale 1 : 75
Section B-B
Scale 1 : 75
Detail A : Skylight Roofing - Rafter
Scale 1 : 2
Detail B : Vertical Garden Wall
Scale 1 : 10
Detail C : Double Glazing Glass Curtain Wall Panel
Scale 1 : 5
Elevation X
Scale 1 : 75
Elevation Y
Scale 1 : 75
3D Perspective Views
 |  |  |
|---|---|---|
 |  |  |
Prototype Design
This design creates a lively environment to the space and bring out relaxation while the customer walk through this space . The structure carry out a sustainable design and provide functionality at the same time. It acts as a green wall and enable the BMS Organic products to be displayed on the structure . The material used such timber partition and green wall suites well with the BMS Organic products theme. Besides that, this space provide fresh oxygen air from the green wall . The whole curved structure is connected till the ceiling . Thus this protraites movement and binding which is drived from the concept “ DOSHA” of Organic Rejuvenation.
 |  |  |
|---|---|---|
 |  |  |
 |  |  |
 |

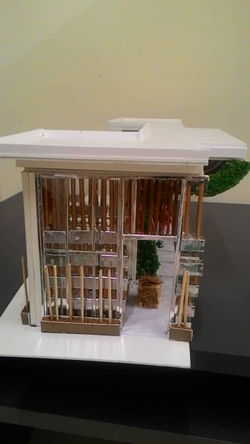

Sectional Model
Anoxometric Model
